Hydrophones and Transducer
Hydrophones
Explore Teledyne RESON’s comprehensive range of high-quality hydrophones designed for oceanographic research, industrial monitoring, passive arrays, reference measurements, and tracking systems delivering precision beneath the surface.
TC4013
The TC4013 offers a usable frequency range of 1Hz to 170kHz and a high sensitivity relative to its size...
TC4014
The TC4014-5 broad band spherical hydrophone offers a very wide usable frequency range with ...
TC4032
The TC4032 general purpose hydrophone offers a high sensitivity, low noise and a flat frequency response...
TC4033
The TC4033 provides uniform omnidirectional characteristics within the full frequency range of 1Hz to...
TC4034
The TC4034 broad band spherical hydrophone provides uniform omni-directional characteristics over a...
TC4035
The TC4035 is a miniature probe hydrophone specifi cally designed as a standard reference hydrophone for...
TC4037
The TC4037 hydrophone sensor module provides a differential balanced output signal. It has been...
TC4038
The TC4038 is a miniature probe hydrophone, specifically designed as a standard reference hydrophone for.…

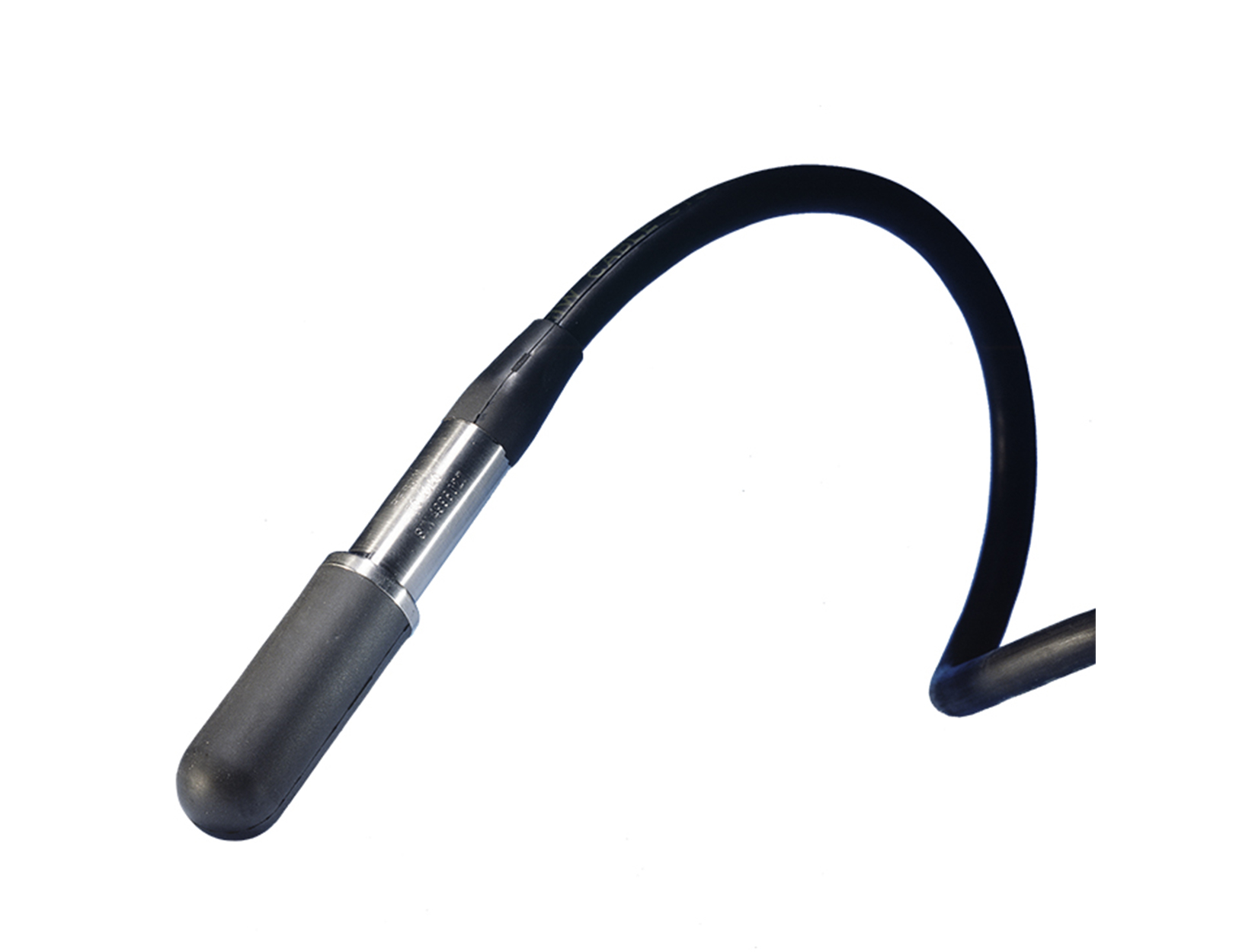

TC4040
The TC4040 is an ideal standard reference hydrophone for calibration of transducers, hydrophones and.
TC4047
The TC4047 miniature hydrophone offers a useable frequency range from 1kHz to 170kHz. The hydrophone...
TC4059
The TC4059 broad band spherical hydrophone provides uniform omnidirectional characteristics over a...
Frequency min
Frequency max [kHz]
Receive Sensitivity
(dB rel. 1Vrms/µPa)*
With integrated
pre-amplifier
Depth rating [m]
TC4013
1 Hz
170 kHz
-211 dB
No
700 m
TC4014
15 Hz
480 kHz
-180 dB
Yes
900 m
TC4032
5 Hz
120 kHz
-164 dB
Yes
600 m
TC4033
1 Hz
140 kHz
-203 dB
No
900 m
TC4034
1 Hz
470 kHz
-218 dB
No
900 m
TC4035
10 kHz
800 kHz
-214 dB
Yes
300 m
TC4037
1 Hz
100 kHz
-193 dB
No
2000 m
TC4038
50 kHz
800 kHz
-228 dB
No
20 m
TC4040
1 Hz
120 kHz
-206 dB
No
400 m
TC4047
1 kHz
170 kHz
-191 dB
Yes
700 m
TC4059
1Hz
480 kHz
-213 dB
No
900 m
Transducer
From guiding underwater positioning systems to enabling clear acoustic communication, Teledyne transducers bring precision to the deep. Built for durability and sensitivity, they deliver consistently high performance in high pressure and harsh conditions to ensure accurate data transmission and navigation.
TC1026
The RESON TC1026 is a high power communication transducer for long/short base line measurement...
TC1037
The RESON TC1037 is a rugged directional transducer with low frequency. It is specifically designed...
TC3021
Universal 2MHz transducer ideal for short range high precision sound velocity measurements...
Applications
Usable Frequency
Beam widths
TC1026
Underwater positioning, pinger/transponder systems, acoustic telemetry & telephone systems
34kHz to 38kHz
Horizontal: Omni-directional Vertical: +/-35°
TC1037
Specifically designed for underwater telephones. Useful for sub-bottom profilers or as low freq. building block
6kHz to 15kHz
Vertical: 80°
TC3021
Universal high frequency transducer for precision short range measurements
2MHz
Conical: 2.2° approx.
